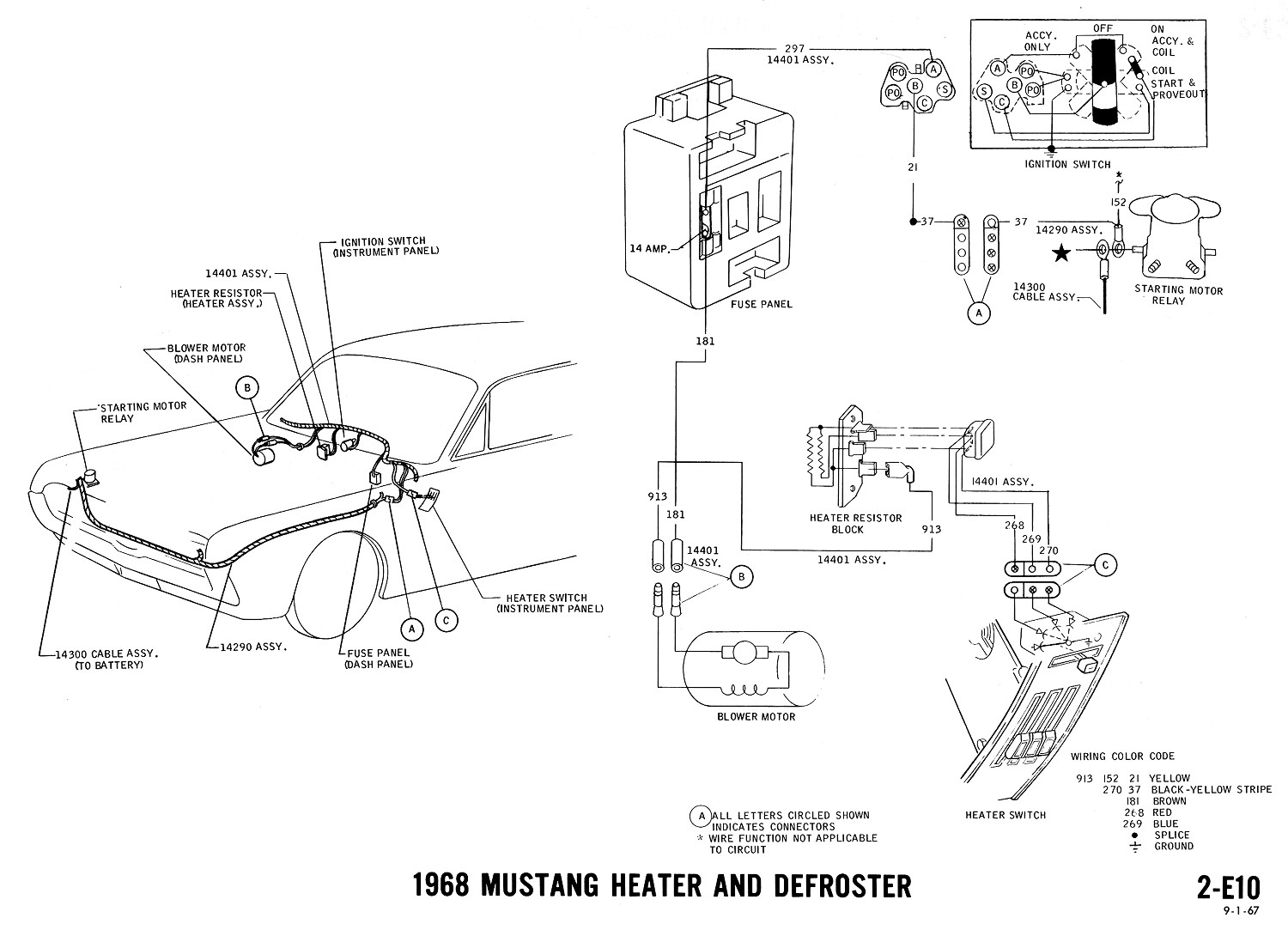

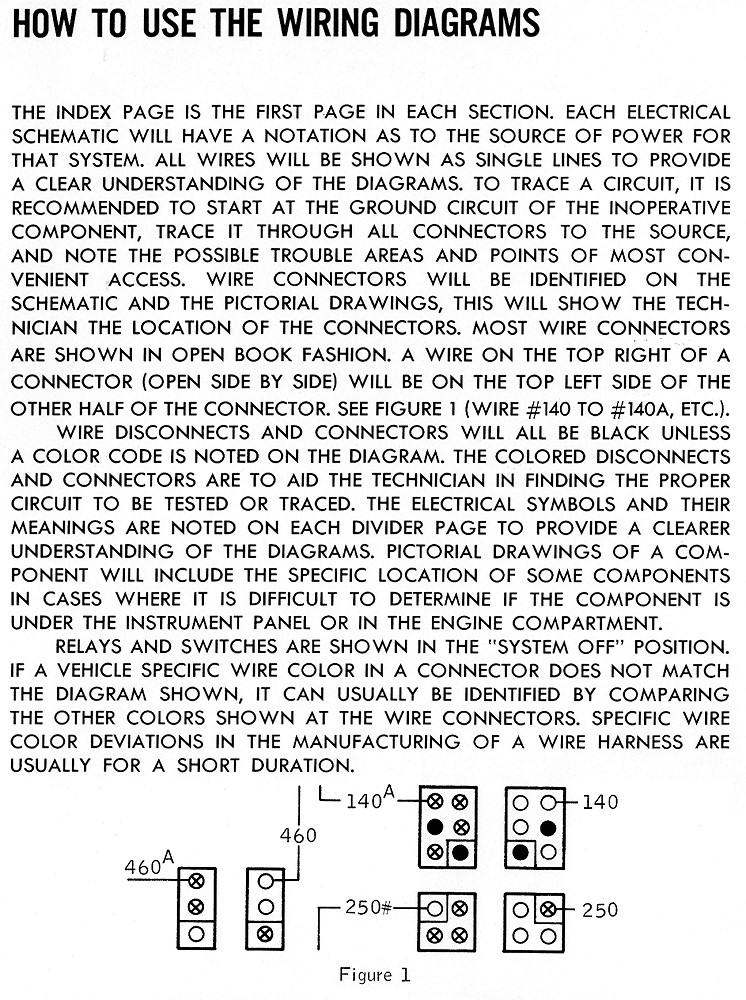

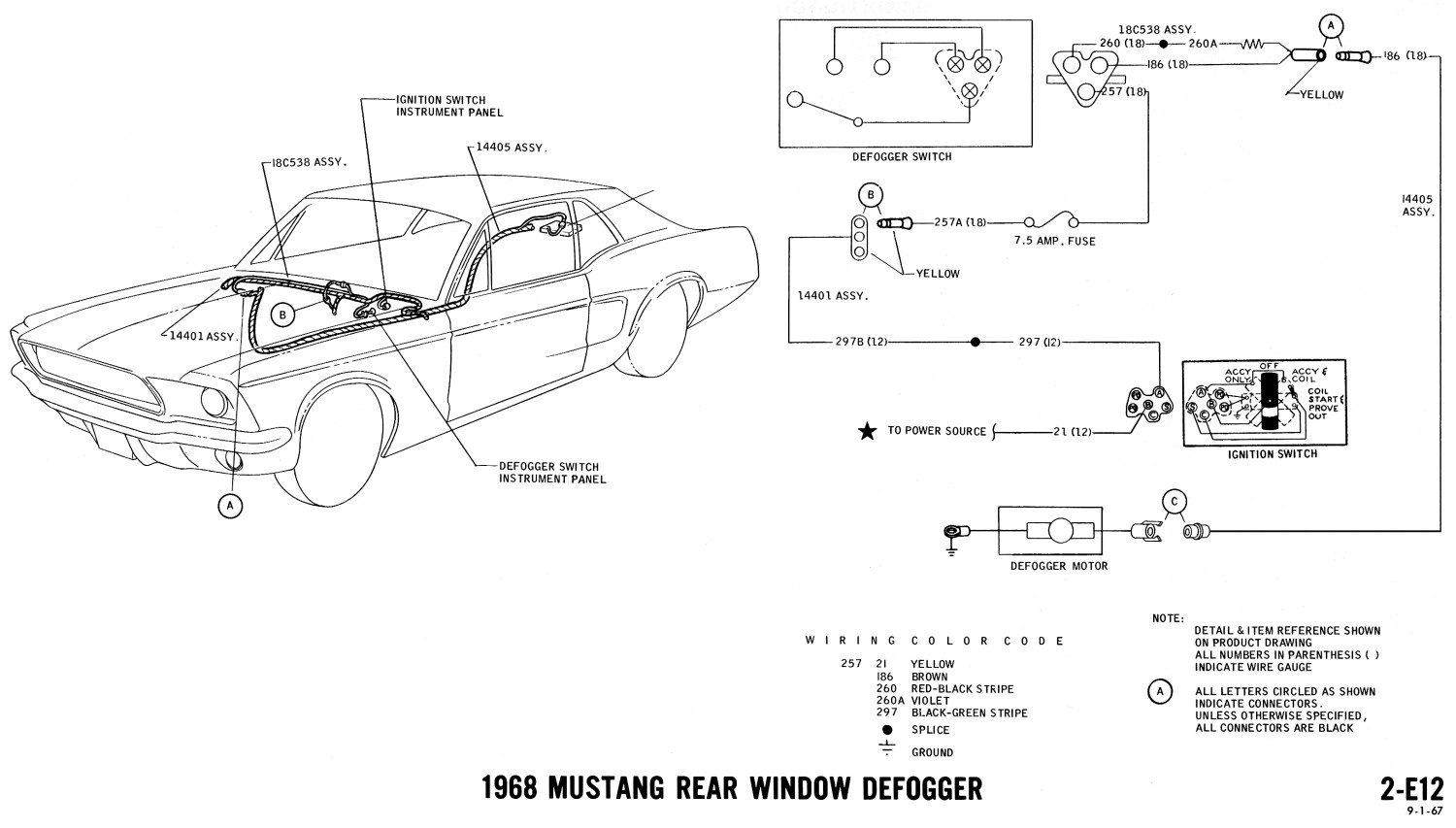

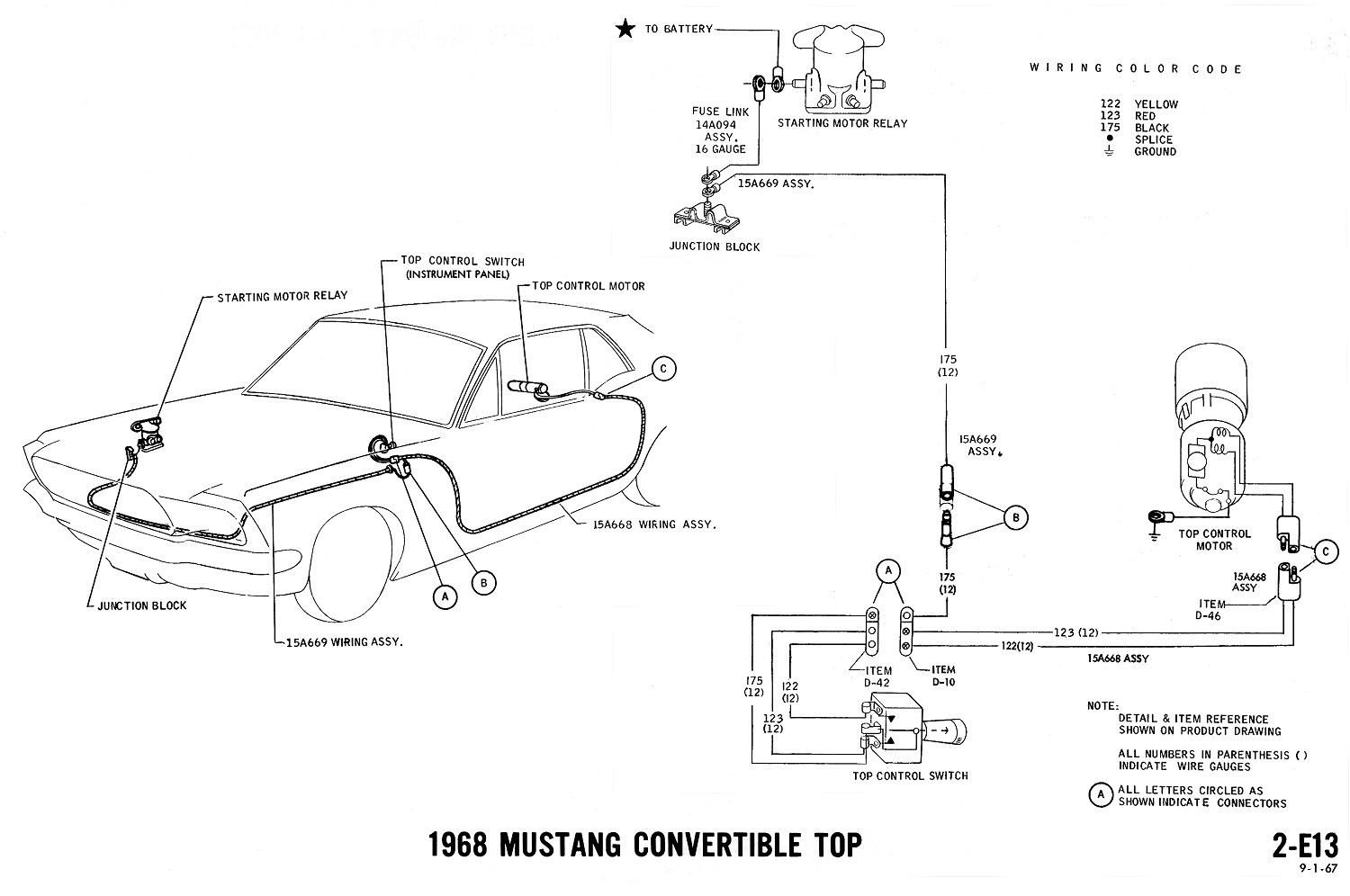

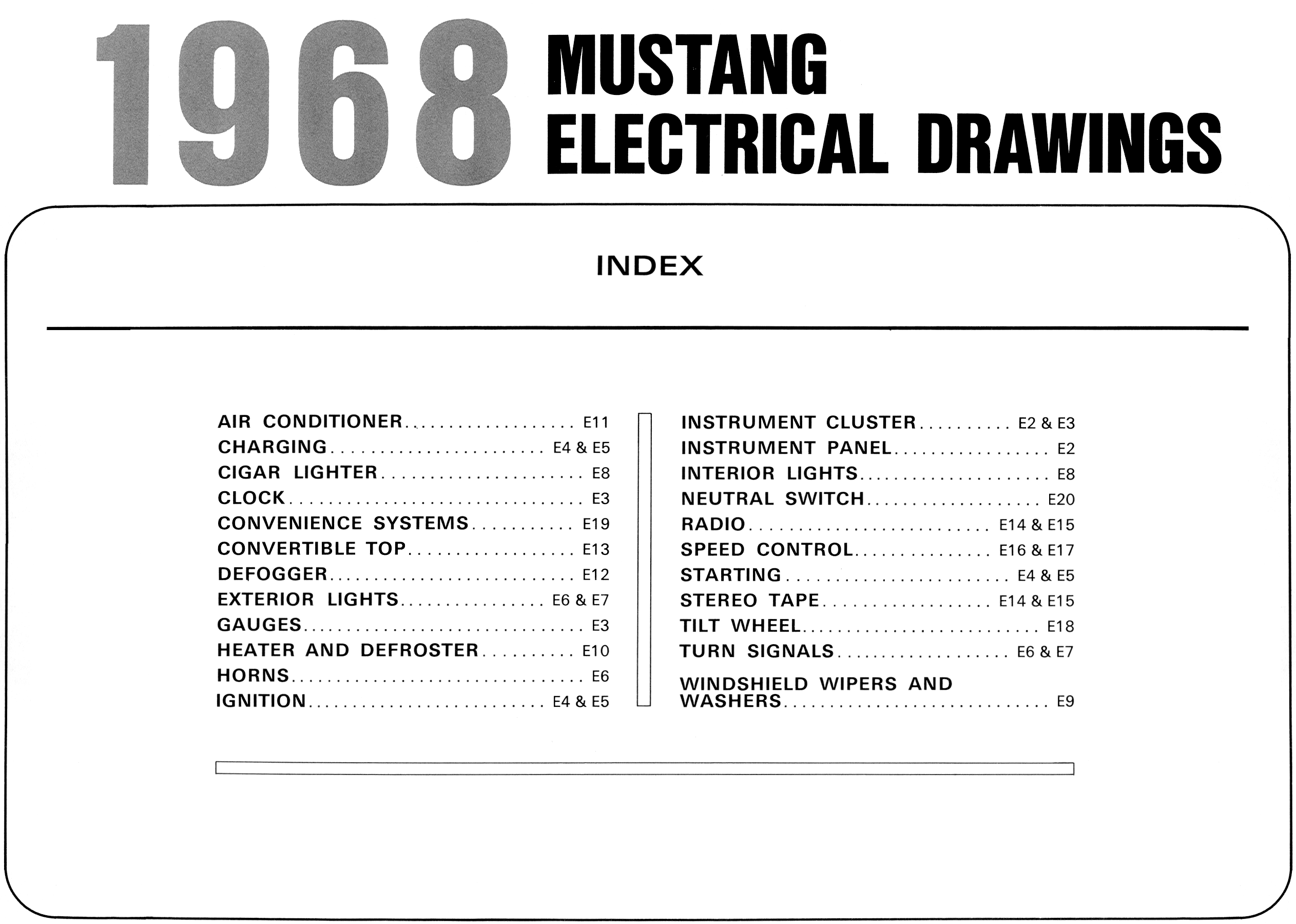

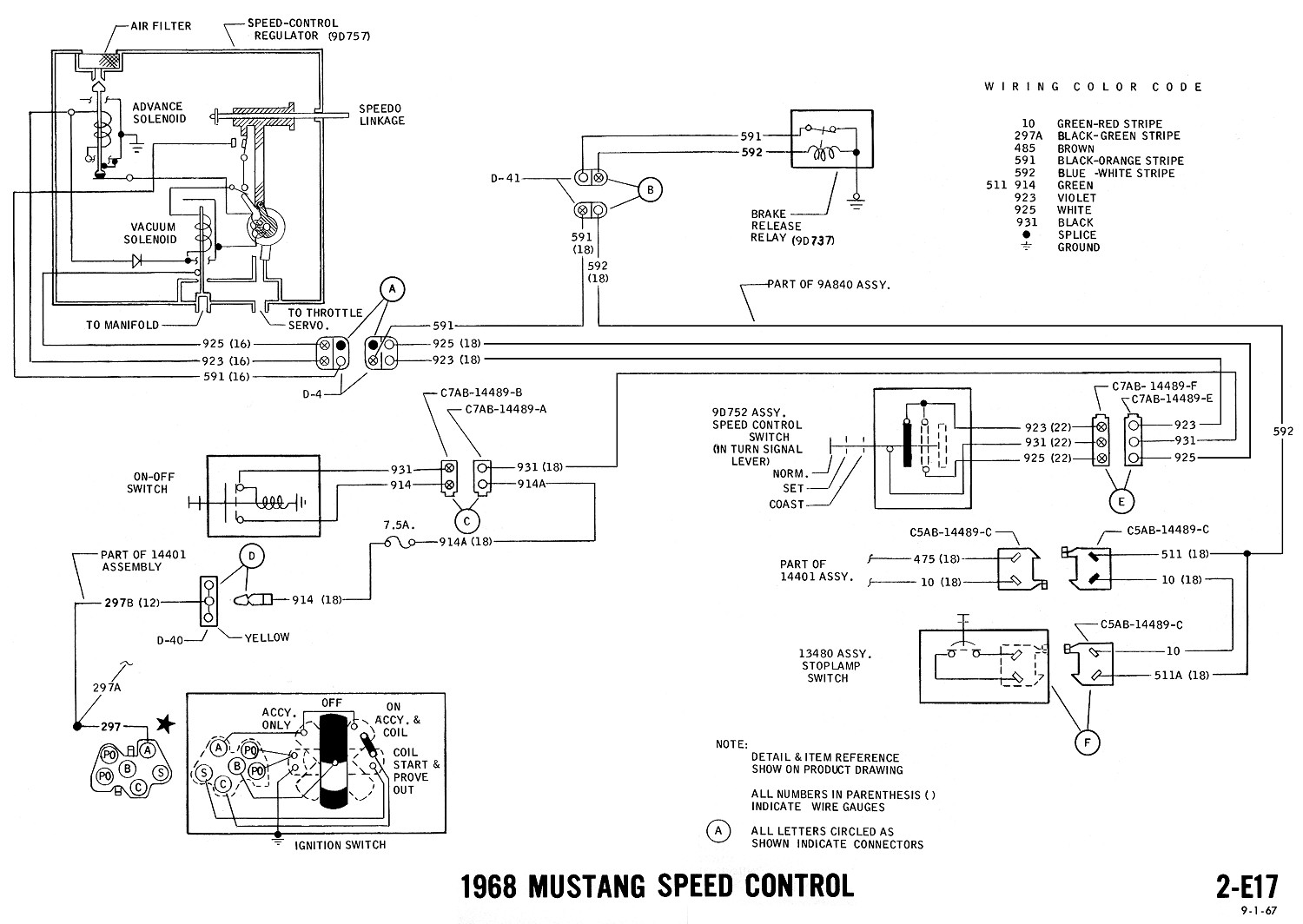

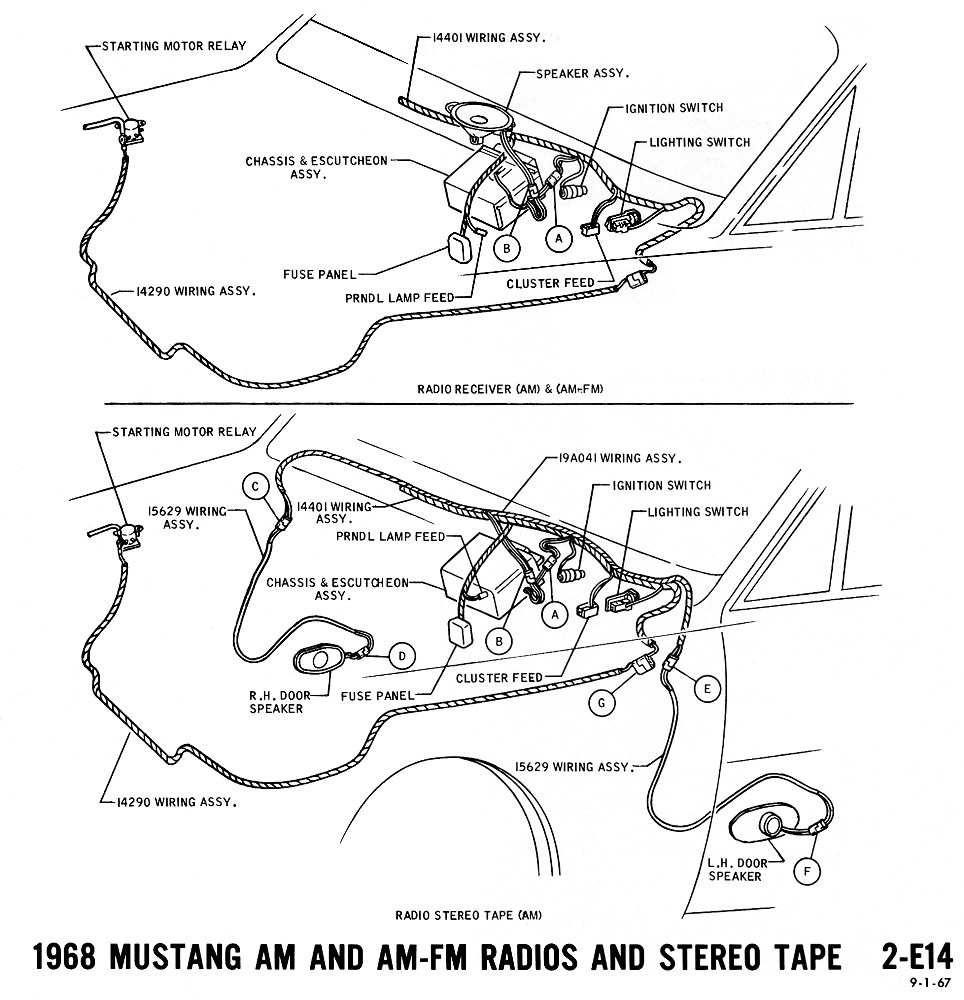

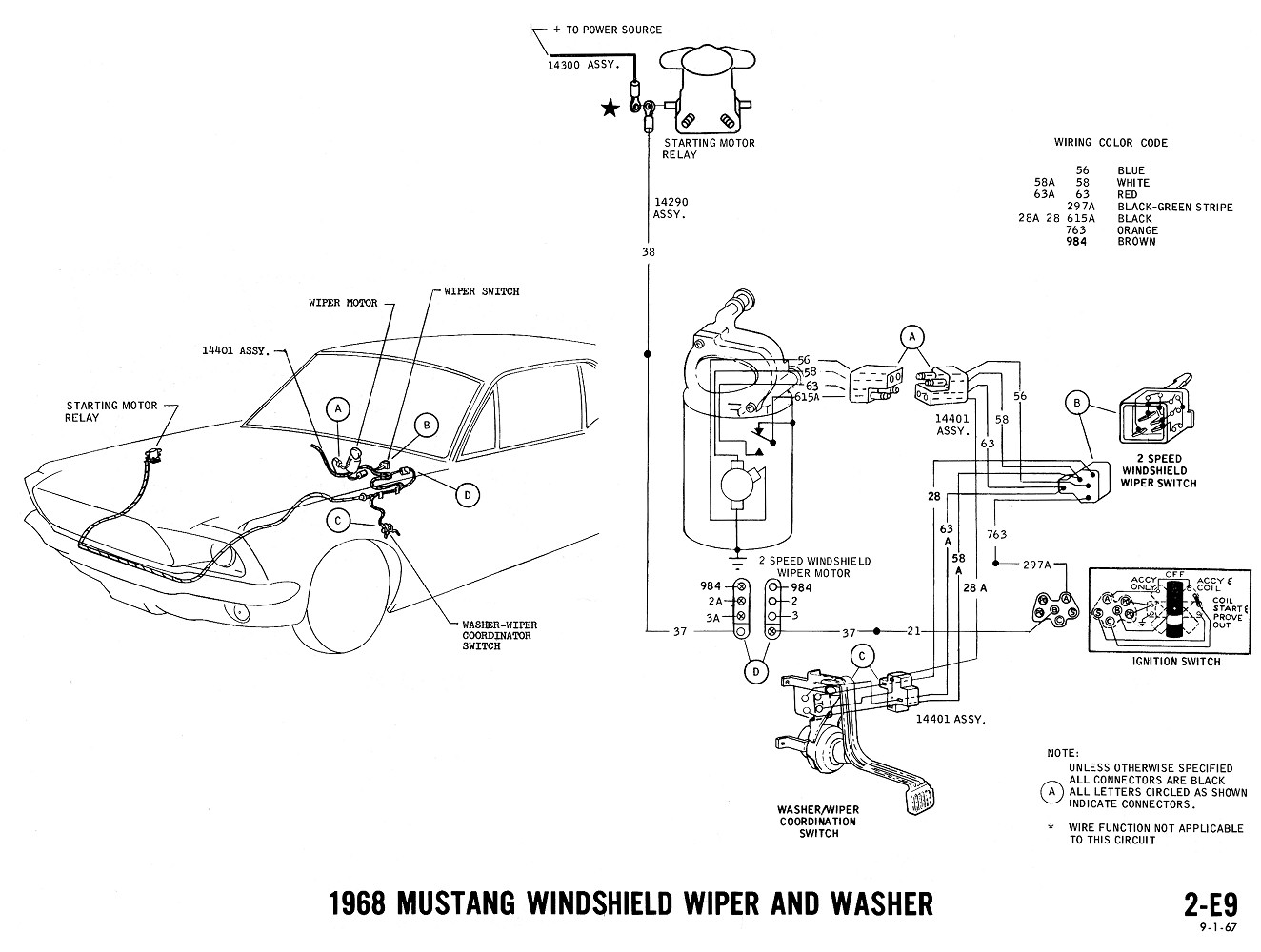

Created this diagram from bits and pieces hidden all around the internet so I thought I’d republish it here all in one place.

Download PDF

*This is ‘internet’ quality information – use at your own risk … I have no idea if its correct or not

Sources
